Used 2005  GMC Sierra 3500 Reg Cab 137.0" WB, 60.4" CA WT at DeFelice Auto near Point Pleasant, NJ

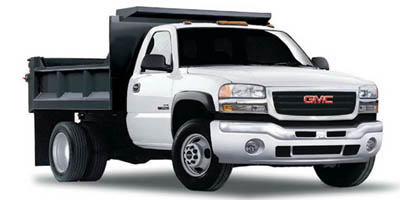

Stock Photo. Actual color and options may vary
1 Photo
Click image to enlarge
2005 GMC Sierra 3500
Vin: 1GDJC34U45E130492 Stock #: U5514A Mileage: 162,947
Internet Price:
$8,995
Est. Monthly Payment:
$381
Year:
2005
Make:
GMC
Model:
Sierra 3500
Body Style:
Reg Cab 137.0" WB, 60.4" CA WT
Engine:
VORTEC 6000 V8 SFI
Mileage:
162,947
Stock #:
U5514A
VIN:
1GDJC34U45E130492
DeFelice Auto
2506 Route 88
Point Pleasant, NJ 08742
  • Verified Equipment
  • Standard Features
  • Tech Specs
  • Factory Equipment
  • Consumer Information
  • Factory Options
    • ENGINE, VORTEC 6000 V8 SFI(300 HP [223.8 kW] @ 4400 rpm, 360 lb.-ft. [486.6 N-m] @ 4000 rpm)
Please Note: The included equipment is based on the dealership's bookout process and manufacturer's default configuration for this particular vehicle's type (year/make/model/style) which may vary slightly from the actual vehicle in stock. See salesperson to verify accuracy prior to purchase.
  • Safety
    • Air bags, frontal, driver and right front passenger, includes passenger side deactivation switch (Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owners Manual for more safety information.)
  • Exterior
    • Paint, solid
    • Bumper, front, chrome (Includes Gray lower with Work Truck and Base Models.)
    • Air dam, Gray
    • Wheel flares, front only (See Color and Trim section for available colors.)
    • Grille, Gray surround
    • Lamps, amber roof marker
    • Lamps, dual cargo area lamps
    • Mirrors, outside rearview, foldaway, manual, Black, adjustable
    • Glass, Solar-Ray light tinted, all windows
    • Wipers, intermittent, front, wet-arm with pulse washers
  • Interior
    • Floor covering, Graphite-colored rubberized vinyl (Required with (52V) Neutral vinyl or (69V) Dark Pewter vinyl.)
    • Steering column, Tilt-Wheel, adjustable, includes brake/transmission shift interlock
    • Steering wheel, includes theft-deterrent locking feature
    • Instrumentation, analog, includes speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature, oil pressure and tachometer
    • Driver Information Center, includes trip odometer and message center (monitors numerous systems depending on vehicle equipment level including low fuel, turn signal "on", transmission temperature and oil change notification)
    • Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder, turn signal on
    • Theft-deterrent system, PASSlock II
    • Sound system feature, 4-speakers
    • Cupholders, front (Also includes rear cupholders on Extended Cab models.)
    • Cigarette lighter, on instrument panel
    • Headliner, Shale-colored cloth, with matching retainer moldings
    • Mirror, inside rearview, manual day/night
    • Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side
    • Assist handle, front passenger (Also includes rear outboard passenger assist handle on Extended Cab Models.)
    • Door trim, side reflectors
    • Coat hook, driver side (Also includes passenger side coat hook on Extended Cab models.)
  • Mechanical
    • Engine, Vortec 6000 V8 SFI (300 HP [223.8 kW] @ 4400 rpm, 360 lb.-ft. [486.6 N-m] @ 4000 rpm)
    • Cooling, external engine oil cooler, heavy-duty air-to-oil, integral to driver side of radiator tank
    • Rear axle, 4.10 ratio (Refer to Engine/Axle chart for availability.)
    • Rear wheel drive
    • Battery, heavy-duty, 600 cold-cranking amps, includes rundown protection and retained accessory power (Not standard with (LLY) Engine, Duramax 6600 Turbo Diesel V8.)
    • Alternator, 105 amps
    • Body, Chassis Cab
    • Frame, hydroformed
    • GVWR, 11,400 lbs. (5171 kg) (Standard with 2WD Models only.)
    • Suspension, front, independent torsion bar, and stabilizer bar
    • Suspension, rear, 3-stage springs
    • Suspension Package, Handling/Trailering, heavy-duty, includes 36mm piston monotube shocks
    • Rear axle, 66" (167.6 cm) wide
    • Tire carrier, outside spare, winch-type mounted under frame at rear
    • Steering, power
    • Fuel capacity, approximate, 50 gallon
    • Exhaust, aluminized stainless-steel muffler and tailpipe
    • Tools, mechanical jack and wheel wrench located in back of cab
Please Note: These features are based on the manufacturer's default configuration for this particular vehicle's type (year/make/model/style) which may vary slightly from the actual vehicle in stock. See salesperson to verify accuracy prior to purchase.
  • Chassis
    • Frame
      • Frame Type: Ladder
    • Tires
      • Rear Tire Capacity: 2150 lbs
      • Revolutions/Mile @ 45 mph - Front: - TBD - Rev/Mile
      • Revolutions/Mile @ 45 mph - Rear: - TBD - Rev/Mile
    • Brakes
      • Brake Type: Pwr
      • Brake ABS System: 4-Wheel
      • Disc - Front (Yes or ): Yes
      • Disc - Rear (Yes or ): Yes
      • Front Brake Rotor Diam x Thickness: 12.8 x 1.5 in
      • Rear Brake Rotor Diam x Thickness: 12.8 x 1.2 in
    • Wheels
      • Front Wheel Size: 16 x 6.5 in
      • Rear Wheel Size: 16 x 6.5 in
      • Front Wheel Material: Steel
      • Rear Wheel Material: Steel
    • Steering
      • Steering Type: Pwr
      • Steering Ratio (:1), On Center: 24.0
      • Steering Ratio (:1), At Lock: 3.14
      • Turning Diameter - Curb to Curb: 44.9 ft
      • Turning Diameter - Wall to Wall: - TBD - ft
    • Fuel Tank
      • Fuel Tank Capacity, Approx: 32 gal
      • Fuel Tank Location: Inboard LH Frame
    • Suspension
      • Suspension Type - Front: Indep Torsion Bar
      • Suspension Type - Rear: 3-Stage Spring
      • Spring Capacity - Front: 4500 lbs
      • Spring Capacity - Rear: 8600 lbs
      • Axle Type - Front: Independent
      • Axle Type - Rear: Full Floating
      • Axle Capacity - Front: 4800 lbs
      • Axle Capacity - Rear: 9200 lbs
      • Shock Absorber Diameter - Front: 35 mm
      • Shock Absorber Diameter - Rear: 35 mm
      • Stabilizer Bar Diameter - Front: 1.25 in
    • Trailering
      • Dead Weight Hitch - Max Trailer Wt.: N/A lbs
      • Dead Weight Hitch - Max Tongue Wt.: N/A lbs
      • Wt Distributing Hitch - Max Trailer Wt.: N/A lbs
      • Wt Distributing Hitch - Max Tongue Wt.: N/A lbs
      • Fifth Wheel Hitch - Max Trailer Wt.: N/A lbs
      • Fifth Wheel Hitch - Max Tongue Wt.: N/A lbs
    • Weight Information
      • Gross Axle Wt Rating - Front: 4500 lbs
      • Gross Axle Wt Rating - Rear: 8550 lbs
      • Curb Weight - Front: 2984 lbs
      • Curb Weight - Rear: 2265 lbs
      • Gross Vehicle Weight Rating Cap: 11,400 lbs
  • Vehicle
    • Vehicle
      • Country of Origin: United States Active Incomplete Vehicle
  • Dimensions
    • Exterior Dimensions
      • Wheelbase: 137.0 in
      • Length, Overall w/o rear bumper: 225.0 in
      • Height, Overall: 76.0 in
      • Overhang, Front: 37.0 in
      • Overhang, Rear w/o bumper: 51.0 in
      • Front Bumper to Back of Cab: 113.6 in
      • Cab to Axle: 60.4 in
      • Cab to End of Frame: 111.4 in
      • Ground to Top of Load Floor: - TBD - in
      • Ground to Top of Frame: - TBD - in
      • Frame Width, Rear: - TBD - in
      • Ground Clearance, Front: 8.8 in
      • Ground Clearance, Rear: 7.6 in
    • Interior Dimensions
      • Front Head Room: 41.1 in
      • Front Leg Room: 41.3 in
      • Front Shoulder Room: 65.7 in
      • Front Hip Room: 61.5 in
  • Powertrain
    • Engine
      • Engine Order Code: LQ4
      • Engine Type: Gas V8
      • Displacement: 6.0L/364
      • Fuel System: SFI
      • SAE Net Horsepower @ RPM: 300 @ 4400
      • SAE Net Torque @ RPM: 360 @ 4000
      • Engine Oil Cooler: Yes
    • Electrical
      • Maximum Alternator Watts: - TBD -
    • Transmission
      • Drivetrain: Rear Wheel Drive
Please Note: These technical specifications are based on the manufacturer's default configuration for this particular vehicle's type (year/make/model/style) which may vary slightly from the actual vehicle in stock. See salesperson to verify accuracy prior to purchase.
  • Safety
    • Safety features
      • Daytime Running Lights
      • Automatic Headlights
    • Air bag - frontal
      • Driver Air Bag
      • Passenger Air Bag
      • Passenger Air Bag On/Off Switch
  • Chassis
    • Brakes
      • ABS
      • 4-Wheel Disc Brakes
    • Wheels
      • Steel Wheels
    • Steering
      • Power Steering
  • Powertrain
    • Fuel
      • Gasoline Fuel
    • Engine
      • 8 Cylinder Engine
    • Drivetrain
      • Rear Wheel Drive
      • Dual Rear Wheels
  • Accessories
    • Mirrors
      • Passenger Vanity Mirror
    • Convenience
      • Adjustable Steering Wheel
      • Intermittent Wipers
      • Power Outlet
      • Engine Immobilizer
      • Front Reading Lamps
    • Air conditioning
      • Multi-Zone A/C
Please Note: These options are based on the manufacturer's default configuration for this particular vehicle's type (year/make/model/style) which may vary slightly from the actual vehicle in stock. See salesperson to verify accuracy prior to purchase.
  • Factory Warranty
    • Basic Years: 3
    • Basic Miles/km: 36,000
    • Drivetrain Years: 3
    • Drivetrain Years: 5
    • Drivetrain Miles/km: 100,000
    • Drivetrain Miles/km: 36,000
    • Corrosion Years: 6
    • Corrosion Miles/km: 100,000
    • Roadside Assistance Years: 3
    • Roadside Assistance Miles/km: 36,000
Please Note: This information is based on the manufacturer's default configuration for this particular vehicle's type (year/make/model/style) which may vary slightly from the actual vehicle in stock. See salesperson to verify accuracy prior to purchase.
